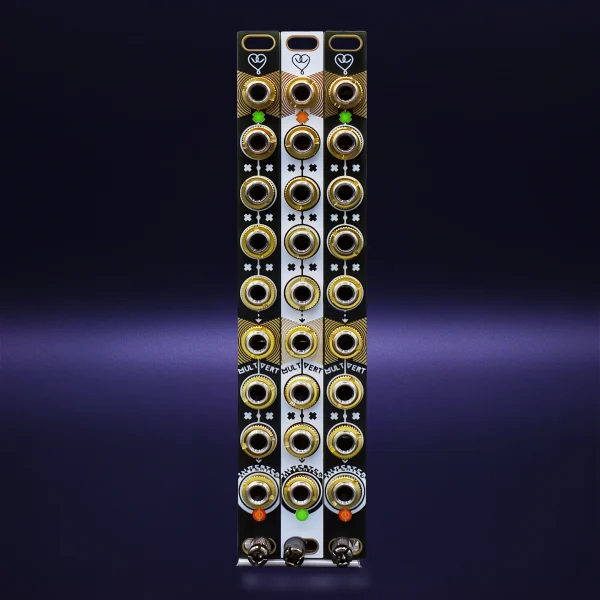

MULTVERT – a premium buffered multiple with a twist – an inverted output at the end of the mult chain. This module is our first module in the 2HP format and we thought we need to bring something different to this common utility!

An inverted output can be super useful in patches and allows for some interesting contrast to your modulation sources. You can also do things like auto panning with the addition of two panned VCAs and an lfo. You can also use it for noise cancellation and if you add a phase offset this can create really interesting drone sounds through fm feedback patches. There are many different possibilities to explore here.

This module is a testament to the collective and passionate energy at Modulove and the idea that you can improve things that already exist and do something different and inspiring.

Features:

• 2HP ultra compact and full of features

• 2 buffered input channels

• 2 buffered bipolar LEDs (green = positive, red = negative)

• reverse polarity protection

• 1 channel with 4 buffered copies

• 1 channel with 2 buffered copies and 1 inverted copy

• normalisation of channel 1 to channel 2

• skiff friendly 35mm depth

• choice of black or white gold plated panels

• power: +12V: 40mA, -12V: 40mA
